A066 TTI D5 Theft-Mate/First Student (schematic)
Overview
Below you will find the schematic for A066 TTI D5 Theft-Mate designed to meet the state of California requirements for First Student as well as key operational features and additional support information to assist with your installation.

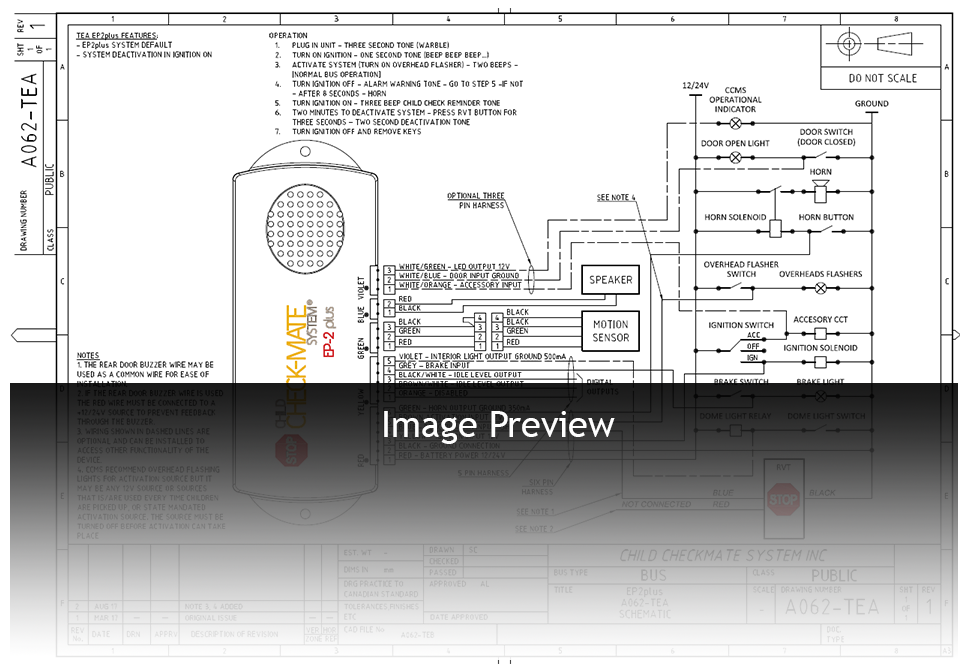

Installation Schematic: A066 TTI D5 Theft-Mate/First Student
Operation Features
- Activation occurs automatically after the ignition has been on for 15 seconds
- Deactivates in the KEY OFF position
- 3 minutes to perform child check, so long as the door is closed.
- Horn will sound for 30 minutes if a child check is not done.
- Doors monitored and alarm latched
- Dome lights will illuminate during child check and for 1 minute after deactivation
- External speaker emits audible instructions
- Motion Sensor - Child double-check active for 60 min after deactivation
- Motion Sensor - Theft-Mate mode starts 60 min after deactivation
- Accessory position 4 min deactivation delay, key cycle resets the timer.
- Road Crossing Feature
- Charter Mode
Order Information
Module: A066 TTI D5
Theft-Mate Component Kit: AC18
- A033: Deactivation Button
- P025: OEM Wire Harness
- A026: 3-Pin Diode Harness
- P029: Speaker
- P013: Speaker Wire Harness
- P020: Motion Sensor Harness
- A019: Motion Sensor
Additional Support Information:
- Operation Guide (TTI Theft-Mate/First Student)
- Motion Sensor Operation
- Where to Mount the Motion Sensor
- Door Monitoring Schematic (E002)
- Dome Light Schematic (E003)
- Door Circuit Scenarios (E004)
- Parking Brake Schematic (E005-2)
- OEM Wire Harness (P025)
- California State Requirements
- Troubleshooting
- Fuse Rating
